The Mist Lubrication System is pneumatically operated. Air is controlled by on off solenoid valve. The air is used to break the oil into small fragments (1-5 microns) for this work is one port air and another oil fed in an atomizer. From the outlet of the atomizer mist lubrication. Feeding the oil up to the atomizer we used a motorized/pneumatic pump.
Download Brochure Send Enquiry

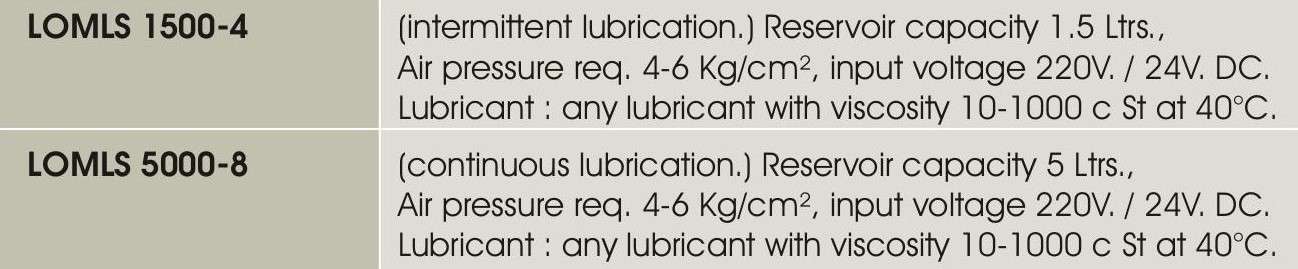

LOMLS 1500-4:- (intermittent lubrication.) Reservoir capacity 1.5 Ltrs., Air pressure req. 4-6 Kg/cm², input voltage 220V. / 24V. DC. Lubricant : any lubricant with viscosity 10-1000 c St at 40°C.
LOMLS 5000-8:- (continuous lubrication.) Reservoir capacity 5 Ltrs., Air pressure req. 4-6 Kg/cm², input voltage 220V. / 24V. DC. Lubricant : any lubricant with viscosity 10-1000 c St at 40°C.
NOTE: Mist lubricator designed by customer requirement.
Discover how our Oil Mist Lubrication Systems use modern technology. These systems produce a thin mist of oil, lubricating mechanical components. They are ideal for high-speed applications because they decrease friction and wear, increasing the equipment’s life. When opposed to traditional techniques, the misting action provides deep penetration into hard-to-reach places, improving lubrication. This novel solution not only enhances performance but also adds to environmental safety by reducing lubricant use

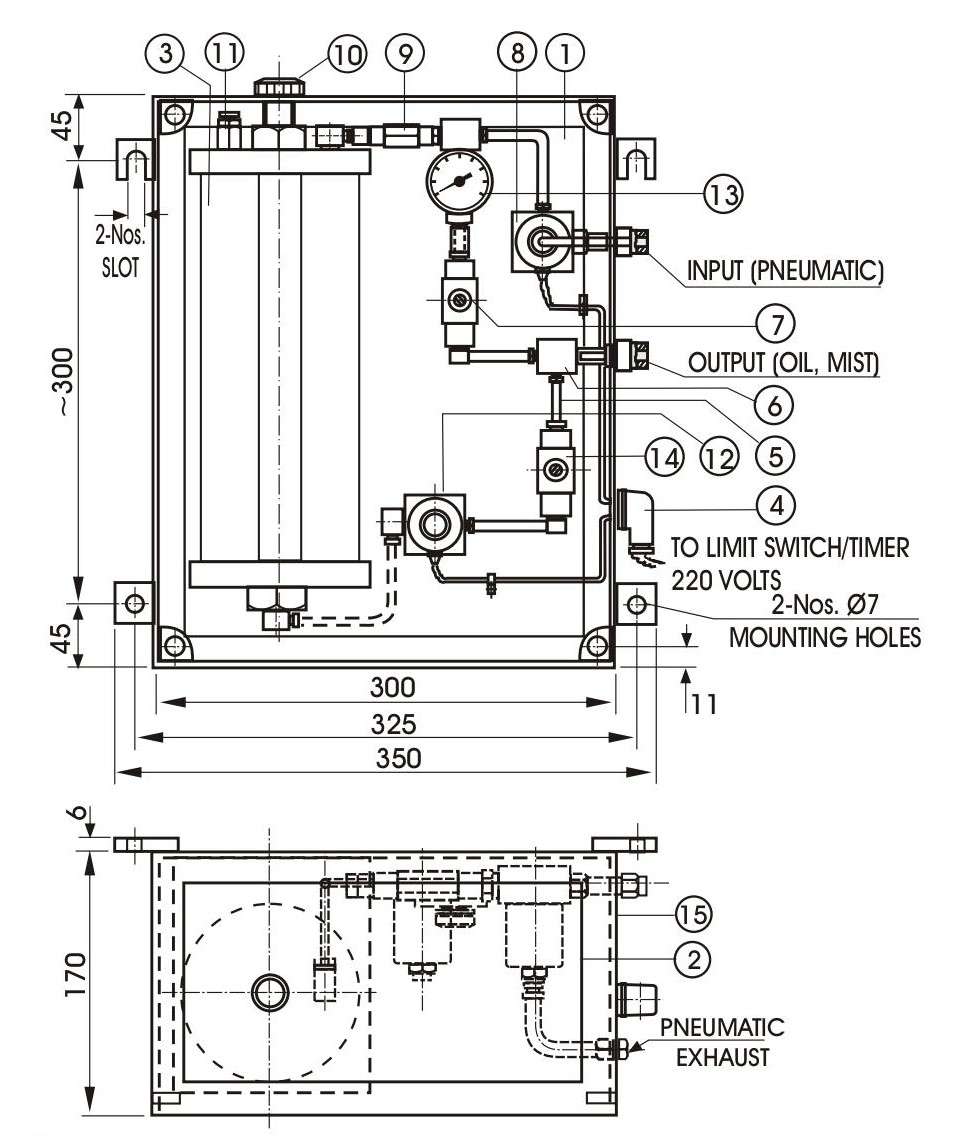

In Oil Mist Lubrication System the pump carries the oil up to the atomizer. In the atomizer, two ports are provided one for oil and another for air. This pump is pneumatically operated as well as motorized. The pneumatic pump is suitable for intermittent lubrication. We can get continuous lubrication also. In this pump an acrylic /metallic reservoir with a capacity of 2Ltr. / 5Ltr., Discharge (Adjustable) Input air Pressure 3 to 5 Kg/Cm² (according to customers requirements also.) and oil filling port is provided on the top. Through air pressure. The oil comes in a junction block (atomizer).
The motorized pump is suitable for continuous /intermittent and multi-point lubrication. Through motorized pumps lubrication come in the atomizer with the help of a progressive block /metering cartridge/control valve from the atomizer we get the mist lubrication.
The Oil Mist Lubrication System is pneumatically operated. Air is controlled by on off solenoid valve. The air is used to break the oil into small fragments (1-5 microns) for this work is one port air and another oil fed into the atomizer. From the outlet of the atomizer mist lubrication. Feeding the oil up to the atomizer we used a motorized/pneumatic pump.
